Coating Board Paper Machine Structure

Home » Solution » Coating Board Paper Making Line » Coating Board Paper Machine Structure

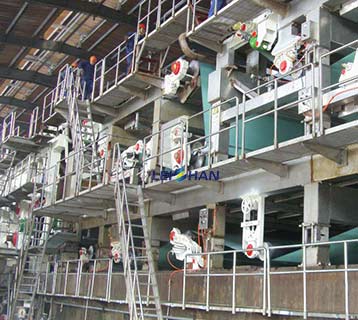

Coating-Board-Paper-Machine-StructureCoating-Board-Paper-Machine-Structure-2

Coating board paper machine uses waste paper,virgin pulp as material to make high quality coating board paper. Finished product can made coating board paper roll.

Coating Board Paper Machine Technical Data
Trimmed width(mm):2400～6600
Basis weight(GSM):200-350
Production capacity(TPD):200～140

Structure of Coating board paper machine:

  • Headbox（D-Holy Rolls Open type, D-Holy Rolls Air-cushion type, Hydraulic type）
  • Inverter form Wire Section（4 layers, 5 layers）
  • Press Section（Vacuum Press, Jumbo Press, Gloss Press）
  • Dryer Section（Diameter 1.5m, 1.8m group Cylinder）
  • Hood（Open Hood, Closed Hood）
  • Sizing Press
  • Calender（Soft Nip, Hard Nip）
  • Coater（Front Coating, Back Coating）
  • Pope Reel
  • AC Inverter Sectional

Leizhan is a professional manufacturer of paper machine and pulp equipment. With 37 years’ development, our products have won lots of customers from all over the world. Cooperating with us is your wise choice. If you have any need, please feel free to contact us. Welcome you to come and visit!
