High Density Cleaner for Paper Making

High-Density-Cleaner-for-Paper-Making-

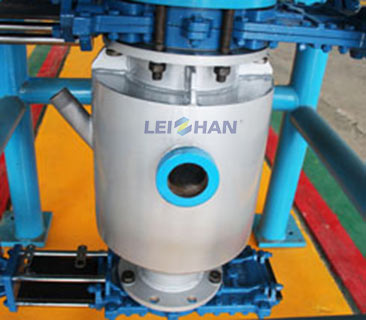

High Density Cleaner is a kind of high concentration pulp purification deslagging equipment, which purifys pulp by separating the heavy impurities from the pulp according to the different proportion of fiber and impurities.

High Density Cleaner Main specifications

1. High Density Cleaner covers a small area, easy to operate, not jam slag discharge, with high efficiency of purification;
2. Double cone structure, great slag separation ability;
3. Large diameter feed tee, large volume per unit, low pressure drop, low power consumption, simple process design;
4. It can remove sand, metal, glass and other heavy impurities, to reduce wearing of follow-up machines.
5. 304 stainless steel tee, thickened wear-resisting ceramics of cone, long service life;
6. Having manual discharge and self-discharging systems
7. Control interlocking system put an edd to the fiber loss.

Leizhan is a professional manufacturer of pulping & paper making equipments. If you are interested in any of our products, please feel free to contact us for further details.
Email: leizhanpapermachine@gmail.com

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
