ZDSZ Series M.C. Hydrapulper, Mid Consistency Hydrapulper

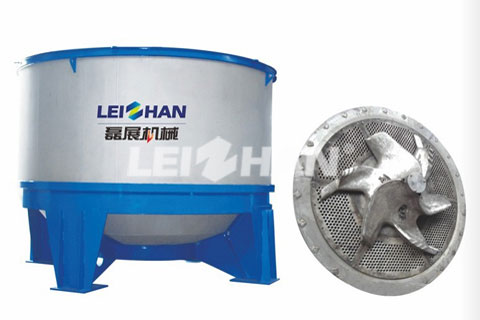

ZDSZ Series M.C. Hydrapulper

ZDSZ Series M.C. Hydrapulper is mainly used for separating waste paper and ink under high consistency in waste paper deinking process.

Application & Features

1. Mainly used for separating waste paper and ink under high consistency in waste paper deinking process.

2. Special spiral rotor effectively promote the circulation and rollover of pulp, reinforce friction between fibers. Finally achieve gentle pulp under high consistency, impurities will not be broke in the process of fiber relief and deinking,

3.Dealing with 12%-18% high consistency pulp, effective chemical mixture and friction between fibers under high consistency make the ink particle separate from the surface of fiber fully.

4. Compact structure, convenient operation and maintenance.

Main Specification

Type	ZDSZ24	ZDSZ25	ZDSZ26	ZDSZ27	ZDSZ28
Normal Volume(m³)	10	15	20	25	30
Consistency(%)	5-8
Production capacity(t/d)	40-60	60-90	80-120	120-170	140-190
Motor power	90	132	160	200	250

Type	ZDSZ29	ZDSZ30	ZDSZ31	ZDSZ32
Normal Volume(m³)	40	50	70	90
Consistency(%)	5-8
Production capacity(t/d)	220-290	300-400	450-600	600-800
Motor power	315	400	630	800

Download complete technical literature [PDF]
