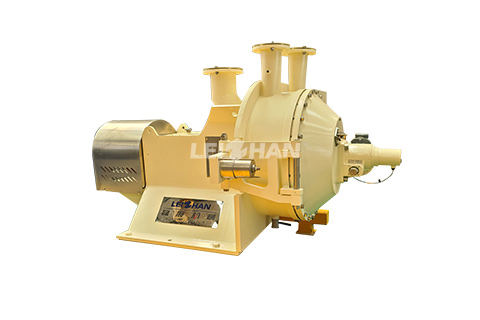

RF Series Double Disc Refiner,Pulp Refining Equipment

RF Series Double Disc Refiner is a new generation of waste paper pulping equipment, which is suitable for 3-6% consistency’s chemical pulp, waste paper pulp and other pulp’s continuous beating, which is an ideal pulping equipment at present.

Application & Feature

1. Mainly used for pulping, improving slurry beating degree to meet the paper making needs.
2. It can be installed various tooth refiner plates. Suitable various raw materials such as wood pulp , machanical pulp, chemical pulp, waste paper pulp etc.
3. Adopt constant power control system, beating effect is stable.
4. Accurate retract mechanism, easy to control, the beating effect is good.

Main Specification

Type	RF20	RF26	RF34	RF42	RF52
Disc diameter(mm)	20-24	26-30	34-38	42-48	52-58
Range of op.consistency(%)	3.5-6.0
Min.flow(L/Min4%)	400	700	1400	2200	6000
Max.flow(L/Min4%)	2400	4500	9000	16000	22000
Max.power(KW)	315	500	900	1700	3000

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
