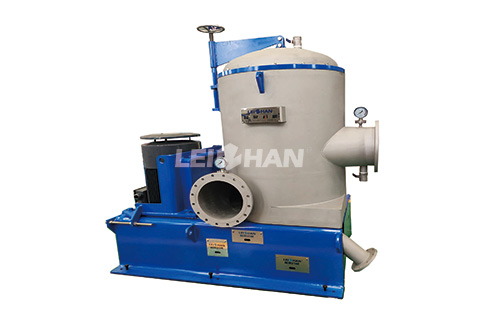

JNS Series Energy-Saving Pressure Screen

Application and Features

1. Upflow design, bottom inlet, reduce heavy impurities and rotor and basket contact, prolong the life of the equipment.
2. Lower energy consumption, greatly reducing the power consumption of screening section.
3. Specially designed rotor, better screening effect.

Main Technical Parameters

Model	0.9	1.5	2	3	4
Screen area(m2)	1.07	1.81	2.26	3.28	4.0
Hole size(mm)	∅1.6-∅3.5
Slot size(mm)	0.10-0.65
Inlet consistency(%)	1-4
Capacity(t/d)	180-220	220-360	300-450	440-660	600-800
Motor power(kw)	37-55	55-75	75-90	90-110	110-460

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
