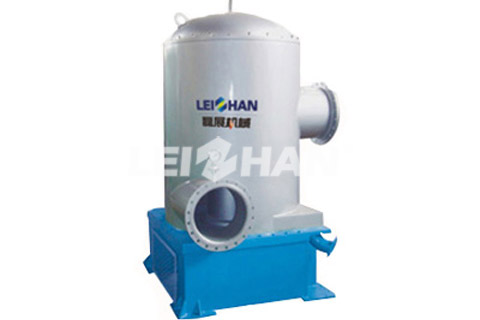

UV Series Up Flow Pressure Screen
UV Series Up Flow Pressure Screen is mainly used for coarse and fine screening of waste paper pulp in stock preparation system.
Application & Features
1.Adopt up-flow structure: pulp inflow from bottom, heavy impurities are discharged from bottom and light impurities from top.
2.UV Series Up Flow Pressure Screen shortens the dwell time of impurities in the screening area and avoids the abrasion to rotor and screen basket. So, UV Series Up Flow Pressure Screen can prolong the service life of rotor and screen basket.
Main Specification
| Type | UV0.5 | UV1.2 | UV2.0 |
| Area of Screen（m2） | 0.5 | 1.2 | 2.0 |
| Concentration of inflow and Out put pulp(%) |
0.2-5.0 | ||
| Size of Screen slot(mm) | 0.15-0.55 | ||
| Size of Screen hole(mm) | 1.2-5.0 | ||
| Production Capacity（t/d) | 20-30 | 40-60 | 80-100 |
| Equipping Power(kw) | 22/37 | 45/75 | 75/110 |
| Type | UV3.0 | UV4.0 | UV5.0 |
| Area of Screen（m2） | 3.0 | 4.0 | 5.0 |
| Concentration of inflow and Out put pulp(%) | 0.2-5.0 | ||
| Size of Screen slot(mm) | 0.15-0.55 | ||
| Size of Screen hole(mm) | 1.2-5.0 | ||
| Production Capacity（t/d) | 100-250 | 160-450 | 200-500 |
| Equipping Power(kw) | 90/132 | 160/220 | 185/315 |
Capacities vary depending on feed size, feed rate, operating conditions, desired product output, characteristics of feed material, and equipment configuration
