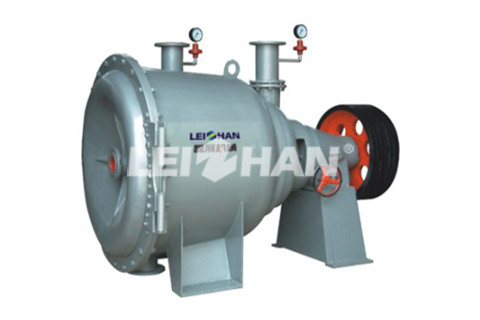

ZDF Series Single Fiber Separator

ZDF Series Single Fiber Separator is an efficient fiber separating equipment which is mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from pulp. Single fiber separator also can be used as tail pulp treatment equipment.

Application & Features

1. Mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from pulp.
2. Specially designed cone structure can better break fiber, and can effectively separate and remove light and heavy impurities.
3. Automatically discharge according to requirement, run reliably.

Main Specification

Type	ZDF2	ZDF3	ZDF4	ZDF5
Diameter of Blade(mm)	ɸ560	ɸ720	ɸ980	ɸ1100
ProductionCapacity（t/d)	30-50	60-80	100-180	165-265
Pressure of Input Pulp(Mpa)	0.2-0.3
Concentration of Input Pulp(%)	2.5-4.0
Power of Motor	37	55	90	110

Capacities vary depending on feed size, feed rate, operating conditions, desired product output, characteristics of feed material, and equipment configuration

Download complete technical literature [PDF]
