ZSF Series Hydrapurger, Screening Equipment Supplier

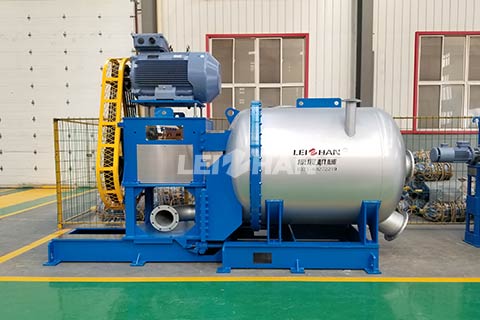

Paper pulping machine ZSF Series Hydrapurger is mainly used for removing light and heavy impurities of waste paper pulp in the process of waste paper pulping.

Application & Features

1. Mainly used for removing light and heavy impurities of waste paper pulp in the process of waste paper pulping.
2. Energy-saving VOKES rotor can avoid breaking impurities.
3. Impurities can be discharged according to different specific gravity.
4. Excellent design of shell structure makes strong ability to collect impurities . Early remove impurities, reduce the pulper and following equipment burden.
5. Open front cover makes it easier to maintain.
6. Automatic control system makes the process of impurities removal convenient and reliable.

Main Specification

Type	ZSF1	ZSF2	ZSF3
Nominal Volume(m3)	1.2	3	5
Consistency (%)	4-5
Production Capacity(t/d)	35-45	60-80	100-140
Motor Power(kw)	45	75	132

Capacities vary depending on feed size, feed rate, operating conditions, desired product output, characteristics of feed material, and equipment configuration

Download complete technical literature [PDF]

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
