Low Density/Consistency/Concentration Cleaner, Waste Paper Pulp Cleaner, Pulp Cleaner Supplier

low density cleaner

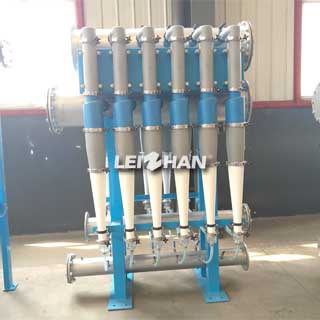

Low Density Cleaner can be used to purify the raw fiber pulp and waste paper pulp. Heavy impurities with a relative density greater than that of the fiber in the slurry can be removed. It can effectively remove metal impurities, sand, stone, mud, glass fragments in the pulp; exfoliation of equipment, pipes and tanks; unvaporized wood chips, grass joints, fiber bundles in the slurry; undissolved pulp, block and other impurities.

Main Technical Datas:

Rate Passing Capacity of Single Equipment(l/min): 400 – 1500

Pressure of Inflow Pressure(mpa): 0.2 – 0.4

Inlet Consistency(%): 0.3 – 1.5

Diameter of Deslagging Outlet(mm): 4 – 18

Accepts Pressure(mpa): 0.06 ~ 0.15

Pressure Drop(mpa): 0.15 ~ 0.2mpa

Volume Deslagging Rate: 8 ~ 12%

Solid Content Deslagging Rate: 18 ~ 20%

Low Density Cleaner can be supplied in a combined unit or in a single unit. The assembly material includes stainless steel and carbon steel. The complete supply scope includes: low density cleaner, frame, inlet main pipe and branch pipe, accepts main pipe and branch pipe, connecting pipe fittings, valves, pressure gauges, etc. Our company is dedicated to customer service, free technical consultation, process design reference scheme, equipment selection, installation guidance and debugging and other technical services.

Leizhan will also provide you with a series of pre-sales and after-sales services to you. Welcome to consult us if you have interest in our products:
Email: flutingpapermachine@gmail.com

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
