ZDR Series Kneader, Thickener Equipment Supplier/Manufacturer

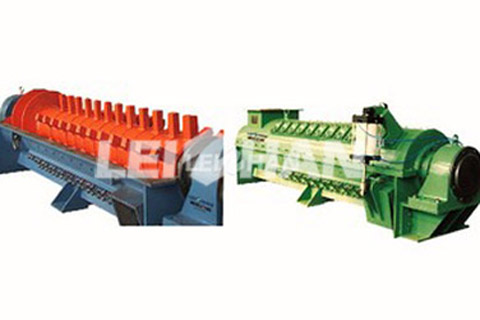

ZDR Series Kneader

ZDR Series Kneader is mainly used to disperse the stickies, grease, wax, plastic, rubber and ink particles and other hot melt impurities from the paper pulp in waste paper pulping process.

Application & Features

1. Mainly used to disperse the stickies, grease, wax , plastic, rubber and ink particles and other hot melt impurities from the paper pulp.

2. Special designed stator and rotor can effectively knead stock as well as disperse hot melt impurities, at the same time can’t reduce the freeness of the stock.

3. Automatic control of discharging can guarantee slurry dispersed evenly.

Main Specification

Type	ZDR1	ZDR2	ZDR3	ZDR4
Nominal Diameter(mm)	ɸ500	ɸ600	ɸ700	ɸ800
Consistency(%)	≧28
Treating Temperature(℃)	90-100
Production Capacity(t/d)	34-45	60-90	100-150	160-220
Motor Power(kw)	110	185	250	315

Download complete technical literature [PDF]

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
