ZLS Series Heating Screw Conveyor, Thickener Equipment Supplier

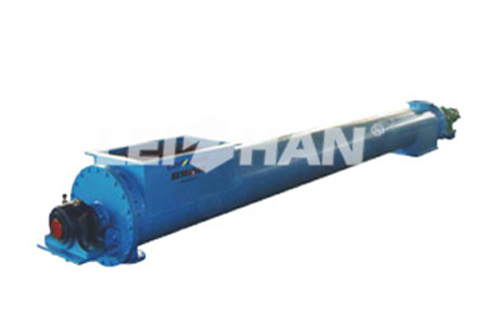

ZLS Series Heating Screw Conveyor

ZLS Series Heating Screw Conveyor paper processing line is mainly used for conveying the concentrated pulp into the high consistency mixer, at the same time heating the slurry and adding bleach solution.

Features

1. Mainly used for conveying the concentrated pulp into the high consistency mixer, at the same time heating the slurry and adding bleach solution.
2. Optimization of the spiral blade can ensure the high consistency pulp convey, while keep loose state,which is advantage to the pulp evenly heating.
3. Reasonable heating device row with special designed anti-push spiral blades can assure slurry uniform heating while save the steam consumption.
4. Frequency control can be easily adjusted to match with other capability of equipment.

Main Specification

Type	ZLS1	ZLS2	ZLS3	ZLS4
Diameter(mm)	ɸ500	ɸ600	ɸ700	ɸ800
Consistency(%)	32-35
Production Capacity(t/d)	30-70	80-120	140-170	180-230
Motor Power(kw)	7.5	15	22	30

Download complete technical literature [PDF]

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
