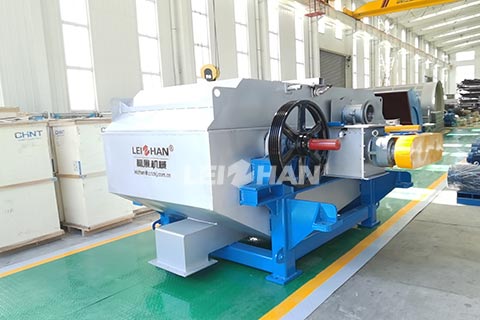

ZNG Series High-speed Stock Washer, Thickener Equipment Supplier

Leizhan high efficient ZNG High-speed Stock Washer is mainly used for washing and concentrating in various domestic and overseas waste recycled pulp, chemical pulp before or after bleaching. Removing ink particles, fillers and other small impurities from the slurry with high efficient.

Application & Features

1. High efficiency of impurity prolapse. 2. High efficiency dewatering, very clean after wash the slurry. 3. Less occupied area. 4. Large production capacity, low power consumption.

Main Specification

Type		ZNG10	ZNG15	ZNG20	ZNG25
Working Width(mm)		1000	1500	2000	2500
Concentration of Input Pulp(%)		0.8-1.5
Concentration of Output Pulp(%)		8-15
Production Capacity	MOW(t/d)(AOCC37#)	40-70	55-100	70-130	100-180
	ONP(t/d)	30-50	40-70	50-90	60-110
Ash Removal(%)		≧90
Power of Main Motor(kw)		30	37	55	75
Motor for Screw Conveyor(kw)		5.5	5.5	7.5	7.5

Download complete technical literature [PDF]

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
