ZNX Series Inclined Screw Thickener, Thickener Equipment

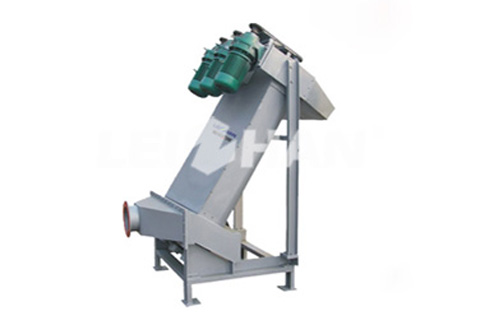

ZNX Series Inclined Screw Thickener

Paper pulp thickening machine ZNX Series Inclined Screw Thickener is mainly used for washing and thickening all kinds of paper pulp.

Application & Features

1.Paper pulp thickening machine is mainly used for washing and thickening all kinds of paper pulp.

2.Special brush which is synchronized running with screw can prevent filter pore from blocking, good dehydration effect.

3.Dehydration by gravity, low power consumption.

Main Specification

Type	ZNX1	ZNX2	ZNX3	ZNX4	ZNX5	ZNX6
Nominal Filtrating Area (m3)	1×1	1×2	1×3	1.5×2	1.5×3	2×3
Concentration of Input Pulp (%)	3-4
Concentration of Output Pulp (%)	10-14
Production Capacity(t/d)	12×20	25×40	35×40	40×60	60×90	100×130
Motor Power(kw)	4	4×2	4×3	7.5×2	7.5×3	11×3

Download complete technical literature [PDF]

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
