ZPT Series H.C. Bleaching Tower, Thickener Equipment Supplier

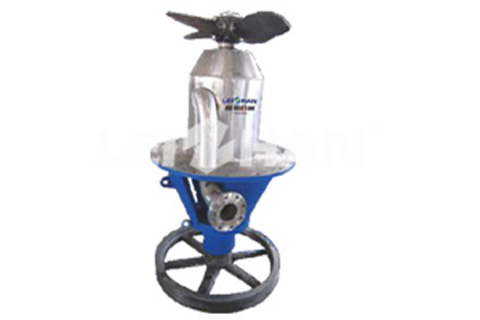

ZPT Series H.C. Bleaching Tower

ZPT Series H.C. Bleaching Tower is mainly used for high concentration of hydrogen peroxide bleaching of deinking pulp, groundwood pulp or other kinds of pulp.

Features

1. Mainly used for high concentration of hydrogen peroxide bleaching of deinking pulp, groundwood pulp or other kinds of pulp.
2. Cone structure of tower reduce the possibility of stock bridging.
3. Special inner structure ensures pulp fall uniformly, which unifies pulp falling time and bleaching time.
4. At the bottom dilution function achieve high consistency bleaching, low consistency conveying. It makes the process of stock preparation simpler.

Main Specification

Nominal Volume(m3)	50	70	100	150
Pulp Consistency(%)	28-32
Bleaching Temperature(℃)	60-70
Bleaching Time(min)	60-90
Production Capacity(t/d)	50-80	80-120	120-170	150-260
Motor Power(kw)	30	30×2	37×2	37×2

Download complete technical literature [PDF]

Project Case

Kraft Liner Paper Making Line

Testline paper machine, also called kraft liner board machine is to produce testliner paper. With large capacity, lower energy consumption, superior quality and the most competitive price, our testliner paper making line enjoys the good command and admission of our customers. If you are interested in our products, welcome to our company, you can also consult via telephone or mail to us. Email: leizhanpapermachine@gmail.com

Corrugated Paper Making Line

Corrugated Paper Making Line needs Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper turn to fine pulp for paper forming on the paper machine. Leizhan plays great emphasis on designing most suitable Corrugated packaging paper manufacturing solutions for corrugated packaging paper makers.

Cultural Paper Making Line

Cultural paper machine line: Firstly, Raw materials are conveyed by Chain Conveyor into Drum Pulper for pulping. Then, High Density Cleaner helps to remove heavy impurities. What’s more, we need to improve slurry beating degree by using Double Disc Refiner. Eventually, the waste paper turn into fine pulp after a series of screening and deslagging and it will be conveyed into Headbox for paper making.
